Sheet metal straightening





HIGH QUALITY RESULT

We straighten sheets and parts in a few minutes

Manual straightening is time-consuming, since our cylinder straightening machines straighten metal sheets in a few minutes and almost without tension. We have achieved excellent results for straightening parts with space gaps while using the build-in gap regulation. Our straightening machines guarantee the highest product quality and required standards.













DIFFERENT PARTS

We straighten to the thickness of 23 mm

The modern technology straightens steel parts, light metal sheets, cut out electrical sheets, steel plates, perforated plates, brake discs, blades, bars, steel products, stillages, stampings, cut-out plates to the thickness of 23 mm.













Advantages of straightening sheets and parts at IMC Slovakia











Time
saving



The straightening is a fast, time-saving process, which straightens sheets and parts in a few minutes.









High quality
standards​



Despite the strength of the straightening machine, the result is by the required quality preserved









Straightening without tension



Straightening of parts with almost no tension









Straightening parts with gaps



We offer straightening parts with space gaps while using the build-in gap regulation









contact us











ASPECTS OF TECHNOLOGICAL APPROACH

A view on innovative, modern straightening technologies at IMC Slovakia s.r.o.

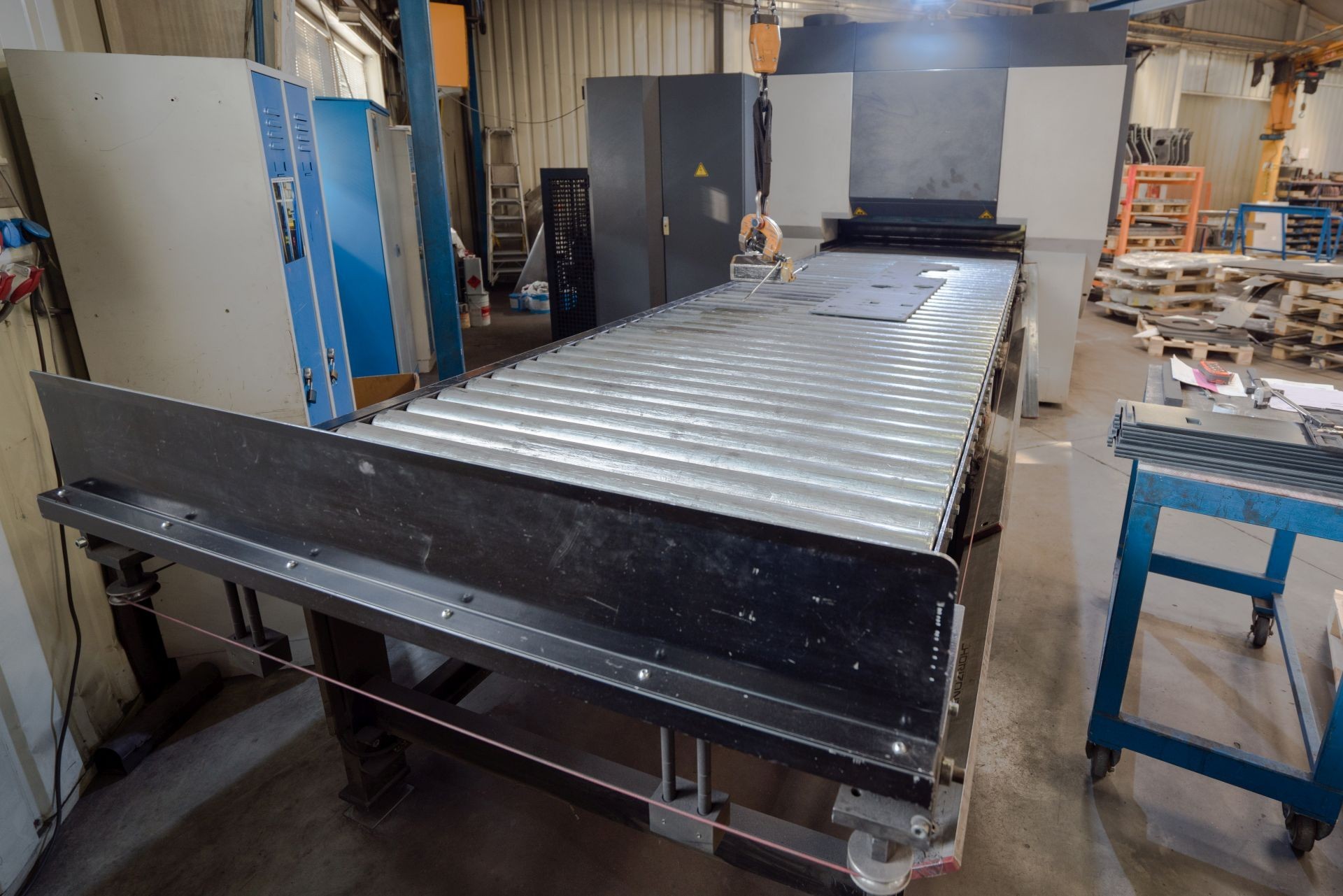

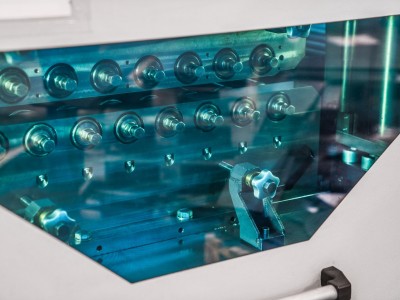

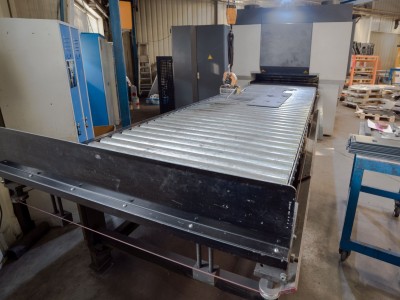

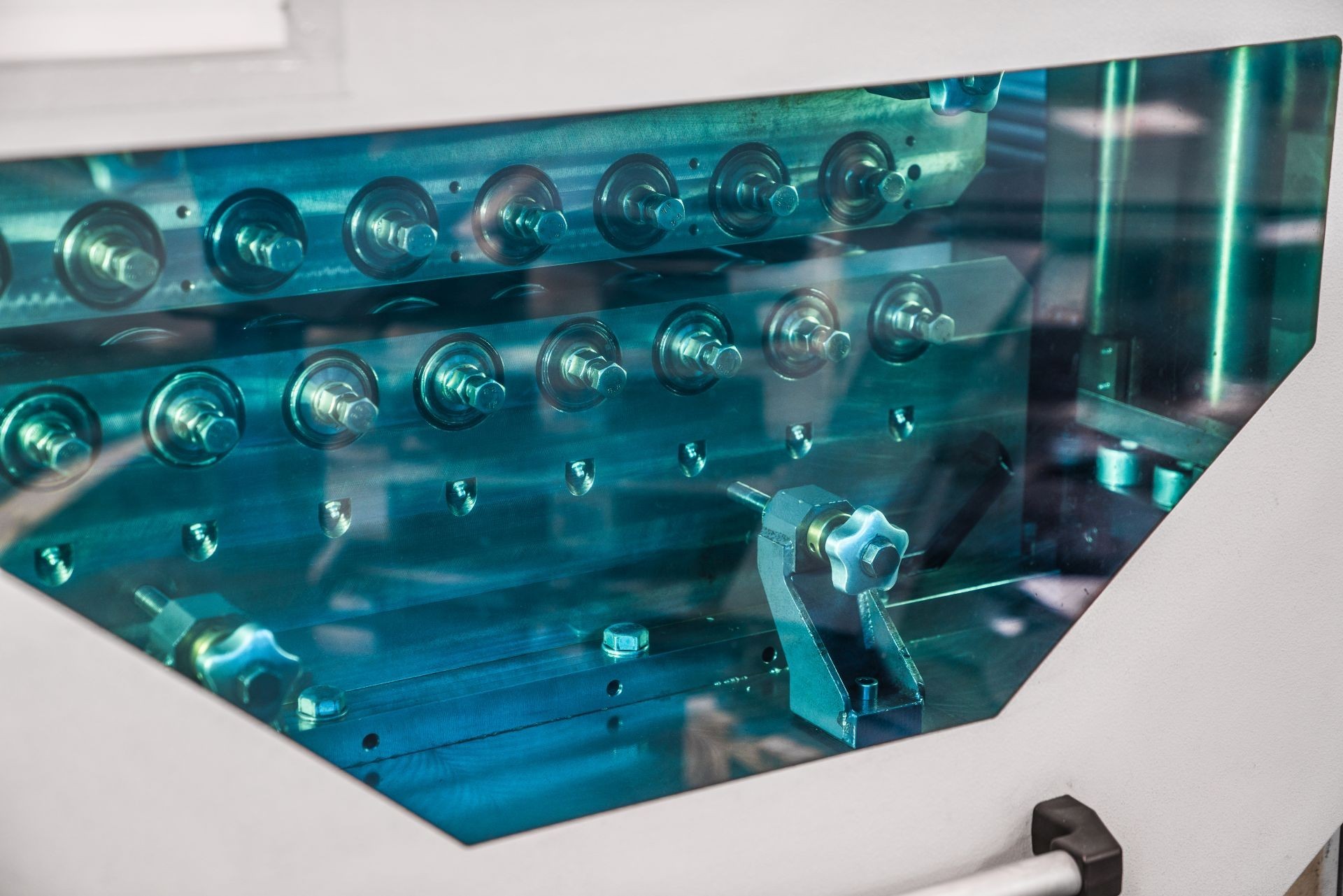

The cylinder straightening machines straighten metal sheets and release internal tension of die-cut and burned metal parts in a few minutes. Due to high-quality hydraulic system, it is not possible that steering elements would be mechanically damaged during straightening process. The straightening machine straightens different thicknesses of materials.











MODEL DIAGRAM

The diagram shows technologies used for straightening stillages, which indicates time-consuming processes









SPECIFICATIONS

Technical specification of straightening sheets



  • Thickness of the piece: 2 mm - 23 mm
  • Width of piece: 100 mm – 1 300 mm
  • Minimal length of piece: 160 mm
  • Material surface: without scale, sharp edges and rust











Examples of quality straightened parts
